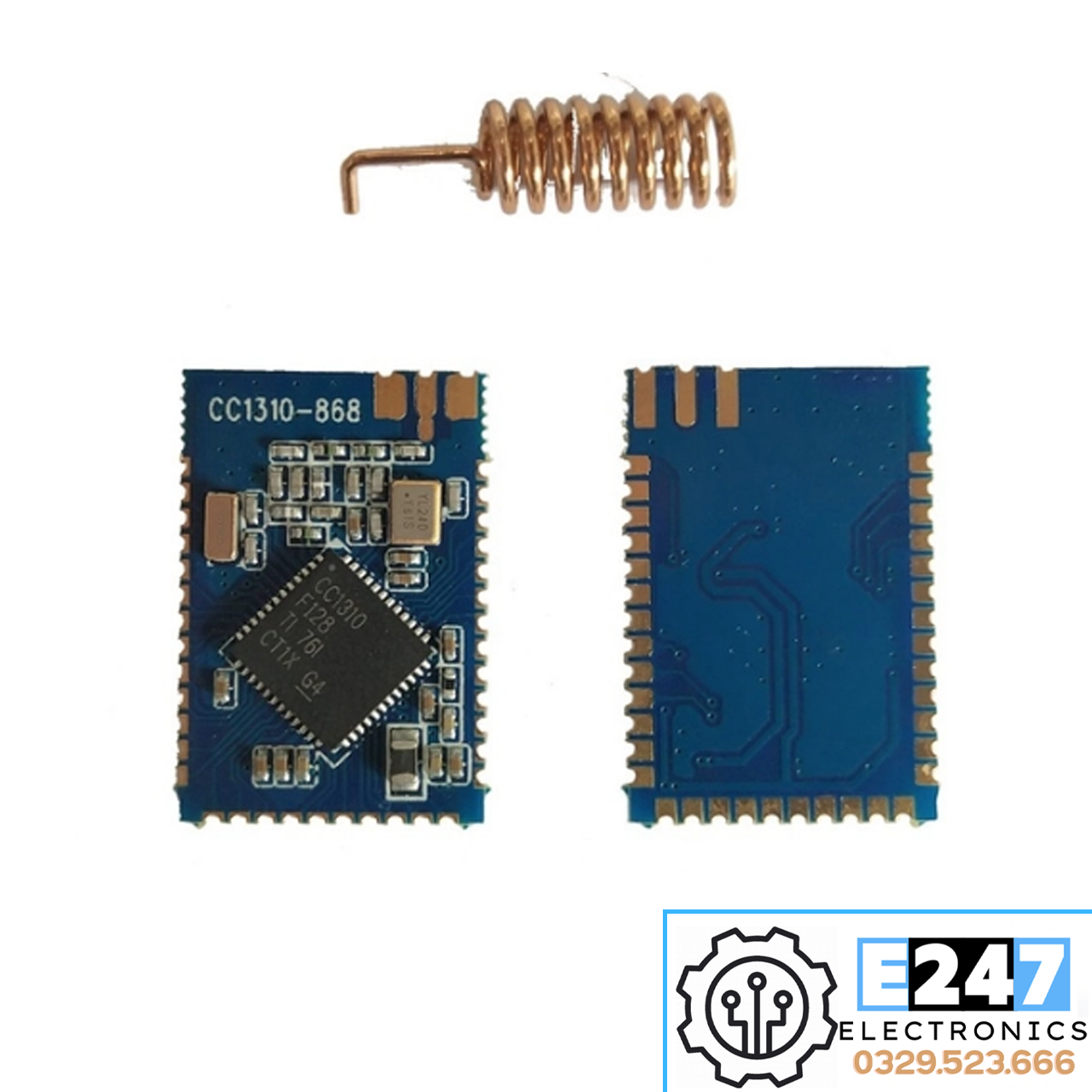

MODULE THU PHÁT RF SUB-1GHZ CC1310-868MHZ

Module thu phát RF Sub-1GHz CC1310-868MHz

• Sub-1G wireless module
• Support 315,433,470,500,779,868,915,920MHz data transmission rate
• Powerful ARM Cortex-M3
• Programmable output power up to + 14dBm
• Excellent Receiver Sensitivity –124 dBm Using Long-Range Mode, –110 dBm at 50 kbps
• Standby: 0.6 μA (RTC Running and RAM and CPU
• etention)Sensor Controller, One Wake Up Every Second Performing One 12-Bit ADC Sampling: 0.85 μA.Shutdown: 185 nA (Wakeup on External Events)
• Use double ARM-CPU,main CPU is Cortex-M3，RF CPU is Cortex-M0
• I2C，I2S，UART and 15 GPIO 128KB of In-System Programmable Flash 20KB of Ultralow Leakage SRAM
• Wide voltage range 1.8V – 3.8V
• Small size: 17.8*12.0*1.60mm
• Have IPEX you can use external attenna easily.
