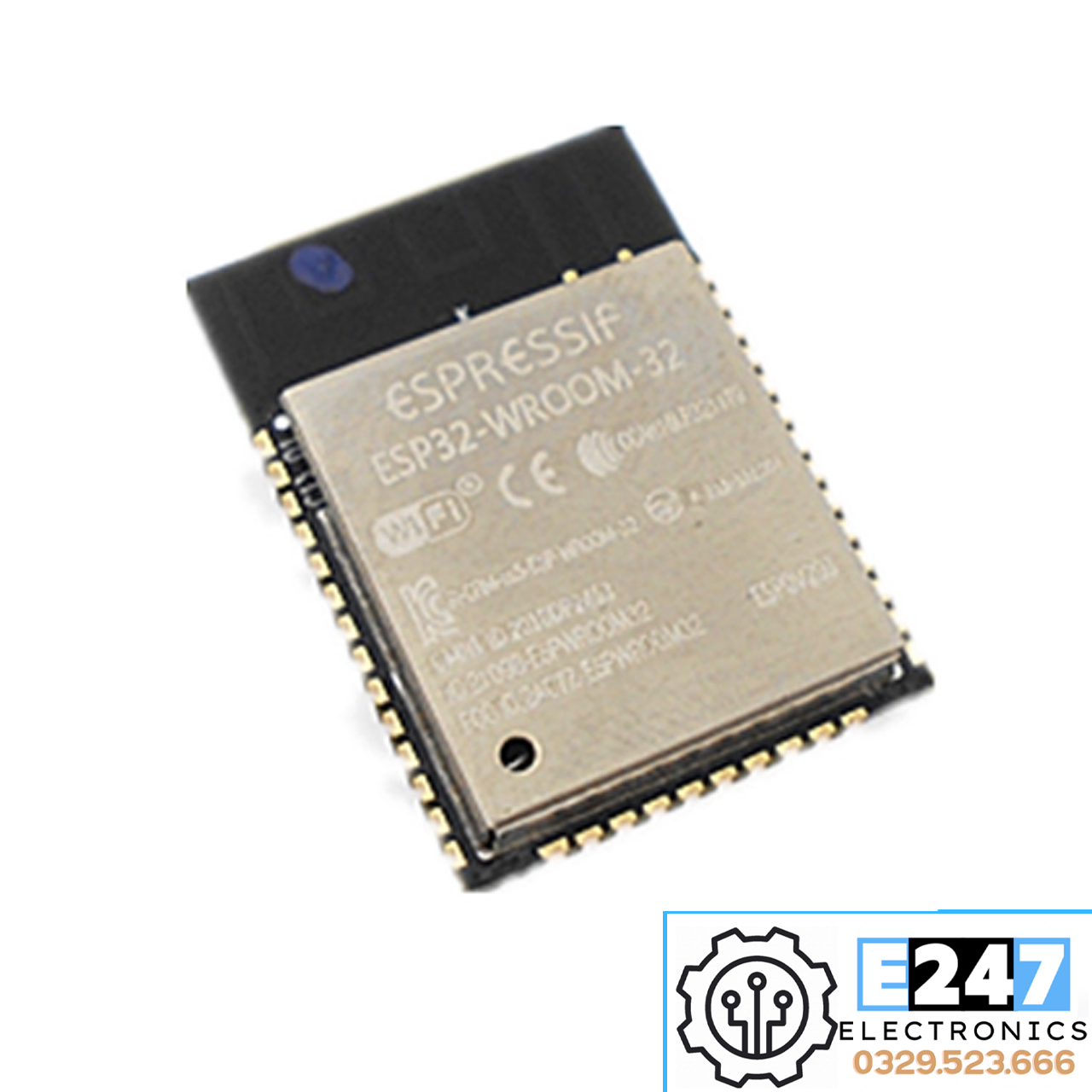

MODULE ESP32 WROOM 32 WIFI + BLUETOOTH

THỐNG SỐ KỸ THUẬT:

- IC chính: Wifi BLE SoC ESP32 ESP-WROOM-32

- Điện áp sử dụng: 2.2V~3.6VDC

- Dòng điện sử dụng: ~90mA.

- Nhân xử lý trung tâm: ESP32-D0WDQ6 Dual-core low power Xtensa® 32-bit LX6 microprocessors.

- ROM: 448KBytes - SRAM: 520 KBytes

- 8 KBytes SRAM in RTC SLOW

- 8 KBytes SRAM in RTC FAST

- 1 Kbit of EFUSE, 256 bits MAC

- WiFi: 802.11 b/g/n/d/e/i/k/r (802.11n up to 150 Mbps)

- Bluetooth v4.2 BR/EDR and BLE specification

- Wi-Fi mode Station/softAP/SoftAP+station/P2P

- Security WPA/WPA2/WPA2-Enterprise/WPS

- Encryption AES/RSA/ECC/SHA - IPv4, IPv6, SSL, TCP/UDP/HTTP/FTP/MQTT

- Interfaces: SD-card, UART, SPI, SDIO, I2C, LED PWM, Motor PWM, I2S , IR, GPIO, capacitive touch sensor, ADC, DAC, Hall sensor, temperature sensor

- Kích thước: 18 x 25.5 x 3.1mm
