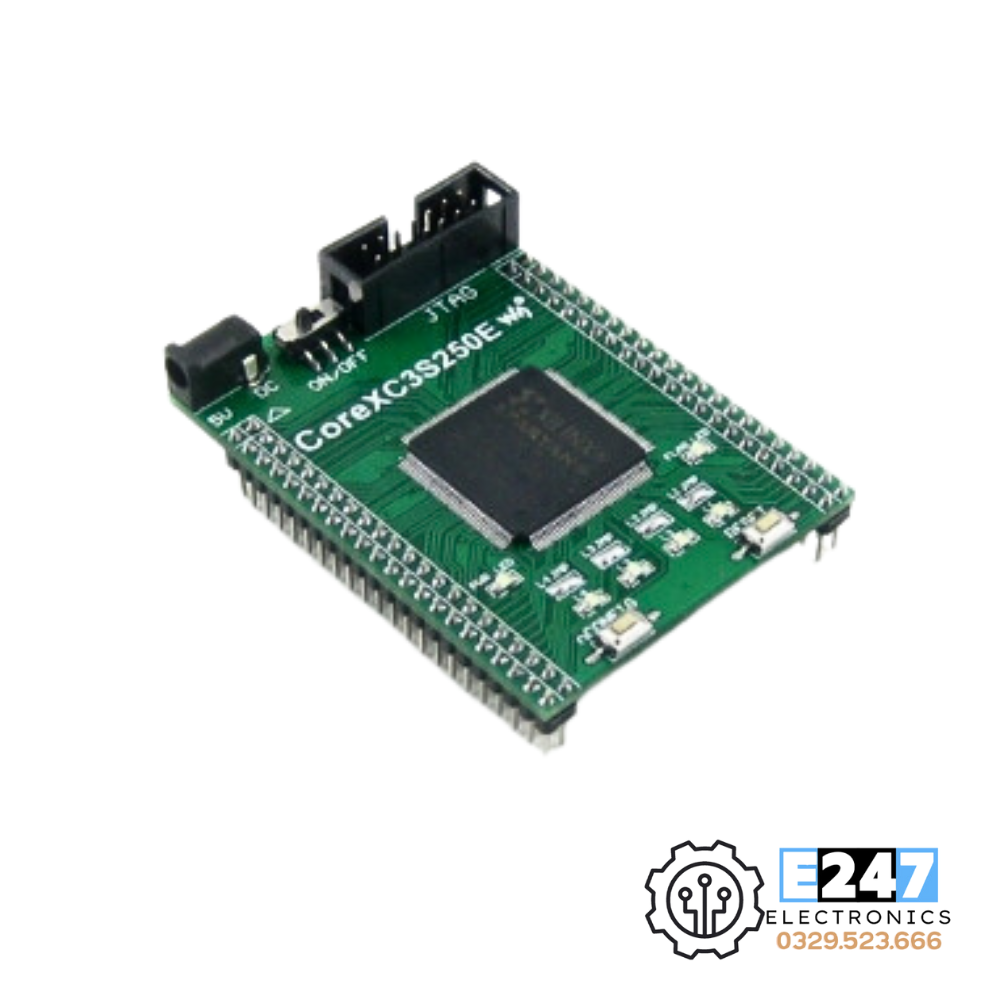

KIT FPGA XILINX CORE3S250E (WAVESHARE)

Thông số kỹ thuật

1. XC3S250E:the XILINX Spartan-3E FPGA device which features:

 - Operating Frequency: 50MHz

 - Operating Voltage: 1.15V～3.3V

 - Package: QFP144

 - I/Os: 80

 - LEs: 250K

 - RAM: 216kb

 - DCMs: 4

 - Debugging/Programming: supports JTAG

2. AMS1117-3.3, 3.3V voltage regulator

3. AMS1117-2.5, 2.5V voltage regulator

4. AMS1117-1.2, 1.2V voltage regulator

5. XCF02S, onboard serial FLASH memory, for storing code

6. Power indicator

7. LEDs

8. FPGA initialization indicator

9. Reset button

10. nCONFIG button: for re-configuring the FPGA chip, the equivalent of power reseting

11. Power switch

12. 50M active crystal oscillator

13. 5V DC jack

14. JTAG interface: for debugging/programming

15. FPGA pins expander, VCC, GND and all the I/O ports are accessible on expansion connectors for further expansion

16. LED jumpers
